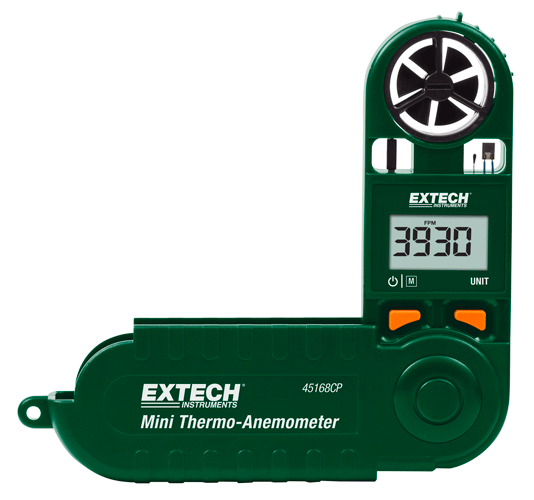

Extech 45168CP: Mini Thermo-Anemometer With Built-in Compass

  Print

Foldable, Pocket Size with Windspeed, Temperature, Relative Humidity, Dew Point, Wet Bulb and Windchill

  Compare

Deskripsi Produk

Foldable, Pocket Size with Windspeed, Temperature, Relative Humidity, Dew Point, Wet Bulb and Windchill

The 45168CP is a Pocket Thermo-Anemometer which measures Windspeed in ft/min, MPH, m/s, km/h, Knots and Beaufort Force with 10 second averaging function. Additional measurements include: Temperature, Relative Humidity, Dew Point, Wet Bulb, and Windchill. The built-in compass provides wind direction/ 360° readings and has an easy-to-use calibration procedure for improved accuracy. Its water resistant housing floats and drop-tested to 6 feet. Featuring a replaceable non-corrosive plastic wind vane (impeller) and a tripod mount for hands free use. Complete with a CR2032 battery and a lanyard.

Features:

  • Pocket sized meter folds up for storage and extends up to 9″ when taking measurements
  • Built-in Compass provides wind direction (Head/Cross/Tail Wind calculation) and 360° readings
  • Delta T displays Air Temperature minus Dew Point
  • Max function recalls highest windspeed reading over time
  • Auto Power Off 5 minutes after last key is pressed with disable feature
  • Water resistant housing floats and drop-tested to 6 feet
  • Replaceable non-corrosive plastic wind vane (impeller)
  • Tripod mount for hands-free applications
  • Complete with CR2032 lithium battery and lanyard

DownloadDatasheet

Specification

SpecificationsRangeResolutionBasic Accuracy
ft/min (feet per minute)60 to 3937 ft/min2 ft/min±(3%rdg + 40 ft/min)
m/s (meters per second)1.1 to 20 m/s0.1 m/s±(3%rdg + 0.2 m/s)
km/h (kilometers per hour0.8 to 72.0 km/h0.1 km/h±(3%rdg + 1.4 km/h)
MPH (Miles per hour)0.5 to 44.7 MPH0.1 MPH±(3%rdg + 0.4 MPH)
knots (nautical miles per hour)0.4 to 38.8 knots0.1 knots±(3%rdg + 0.6 knots)
Beaufort Force1 to 8 BF1 BF±1
Temperature5 to 122°F (-15 to 50°C)0.1°±1.8°F/1°C
Relative Humidity0.1% to 99.9%0.10%±3%
Dew Point-4°F to 122°F (-20 to 50°C)0.1°
Wet Bulb23°F to 122°F (-5 to 50°C)0.1°
Compass0 to 360°±2°
DimensionsMeter: 5.51 x 1.77 x 0.98″ (140 x 45 x 25mm); Vane: 1″ (24mm) diameter
Weight3oz (95g)
