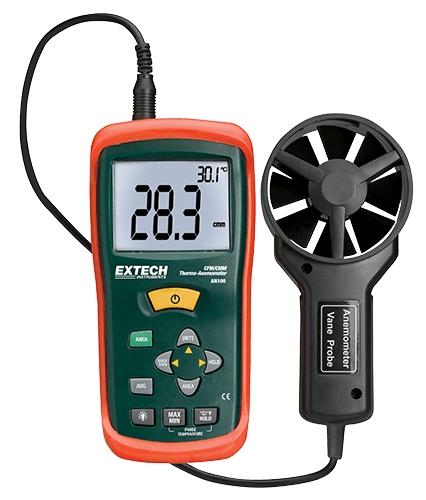

Extech AN100 Extech AN100: CFM/CMM Mini Thermo-Anemometer

  Print

Large display of Airflow or Air Velocity

  Compare

Deskripsi Produk

Large display of Airflow or Air Velocity

The AN100 CFM/CMM Thermo-Anemometer can simultaneously display Air Flow or Air Velocity plus Ambient Temperature. Easy to set area dimensions (ft² or m²) are stored in the meter’s internal memory for the next power on. Additional features include: 20 point average for Air Flow and 3% velocity accuracy via low friction 2.83 in. D (72mm) ball bearing vane wheel on 3.9ft (120cm) cable. Comes complete with 9V battery, protective rubber holster and case.

Features:

  • Simultaneous display of Air Flow or Air Velocity plus Ambient Temperature
  • Easy to set Area dimensions (ft² or m²) are stored in the meter’s internal memory for the next power on
  • 20 point average for Air Flow
  • 3% velocity accuracy via low friction 2.83″D (72mm) ball bearing vane wheel on 3.9ft (120cm) cable

DownloadDatasheet

Specification

SpecificationsRangeResolutionBasic Accuracy
Air Velocity0.40 to 30.00 m/s0.01 m/s±3% m/s
1.4 to 108.0 km/h0.1 km/h±3% km/h
80 to 5906 ft/min1 ft/min±3% ft/min
0.9 to 67.2 mph0.1 mph±3% mph
0.8 to 58.3 knots0.1 knots±3% knots
Air Temperature14 to 140˚F (-10 to 60˚C)0.1˚F/˚C±6.0˚F (3˚C)
Airflow0 to 9999 CMM (m3 /min)0.1
0 to 9999 CFM (ft 3 /min)0.1
Dimensions/Weight7 x 2.9 x 1.3″ (178 x 74 x 33mm)/1.6lbs (700g)
