BR250-4

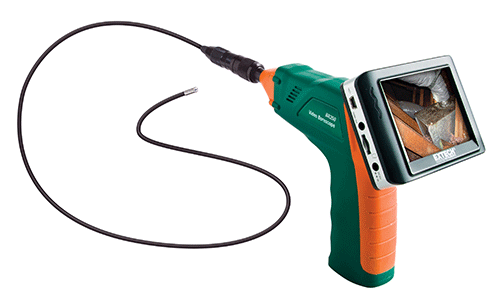

Extech BR250-4: Video Borescope/Wireless Inspection Camera

  Print

4.5mm camera diameter and 3.5″ Color TFT LCD Wireless Monitor

  Compare

Deskripsi Produk

4.5mm camera diameter and 3.5″ Color TFT LCD Wireless Monitor

Extech’s Video Borescope Inspection Camera with a 4.5mm camera provides a glare-free close-up field of view. It includes a 3.5″ color TFT LCD wireless monitor that can be detached from the base and viewed from a remote location up to 32ft (9.75m) from measurement point. Images and videos can be captured with date/time stamp and played back on the monitor or viewed on a PC via USB input. Ideal for Home Inspection (Inspect in walls for mold, insect infestation, electrical wire or water pipe location), HVAC (Inspect inside ducts, behind motors and compressors), and Automotive (View inside or around engines and transmissions) applications.

Features:

  • Detachable wireless color display can be viewed from a remote location up to 32ft (10m) from measurement point
  • 2GB microSD memory card (included) for capturing images (JPEG) or video (AVI) for viewing on your PC
  • Captured video and still images with date/time stamp can be played back on the wireless monitor or your PC
  • 4.5mm diameter camera head with 39″ (1m) cable
  • Video and images can also be transferred to your PC via the microSD card (with included SD adaptor) or USB cable (included) and viewed using Windows® Multimedia Player
  • Menus in 10 languages: English, Chinese, German, French, Spanish, Portuguese, Italian, Japanese, Dutch, and Russian
  • Mini water-proof (IP67) 4.5mm camera head
  • Four bright LED lamps with dimmer to illuminate viewed object
  • Glare-free close-up field of view
  • Complete with 4.5mm camera probe (BR-4CAM), 4 AA batteries, rechargeable display battery, microSD memory card with SD adaptor, USB cable, video interconnect cable, AC adaptor (100-240V, 50/60Hz), magnetic base stand, and hard case
  • Optional BR200-EXT extension cable available for increasing viewing depth if purchased with a 5.8mm camera probe or larger (shown on next page). Not compatible with 4.5mm camera probe (BR-4CAM); Extension cable has a diameter of 19mm and 37” (0.95m) cable length; maximum 2 extension cables can be connected to the borescope

DownloadDatasheet

Specification

SpecificationsRange
Camera
Pixels712 x 486 (NTSC)
Transmission Frequency2.4GHz
Transmission Range32ft (10m) unobstructed view
Viewing directionViewing Angle 63°
Focus distance from object5.9″ to 9.8″ (15 to 25cm)
Shaft diameter4.5mm
Working length3.3ft (1m)
Minimum bend radius2.36″ (60mm)
Handle Dimensions7.3 x 5.7 x 1.6″ (186 x 145 x 41mm)
Weight18.7oz (530g)
Monitor
LCD Screen Type3.5″ TFT
Pixels320 x 240
Video Output Level0.9 to 1.3V@75Ω
Frame Rate10, 15, 20, 25, 30FPS
Video Resolution960 x 240 (avi format)
Image Resolution640x 480 (jpeg format)
Monitor Dimensions3.9 x 2.7 x 1″ (100 x 70 x 25mm)
Operating/Charge Time1.5 hours/3 hours
Weight4.9oz (140g)
