HDV640

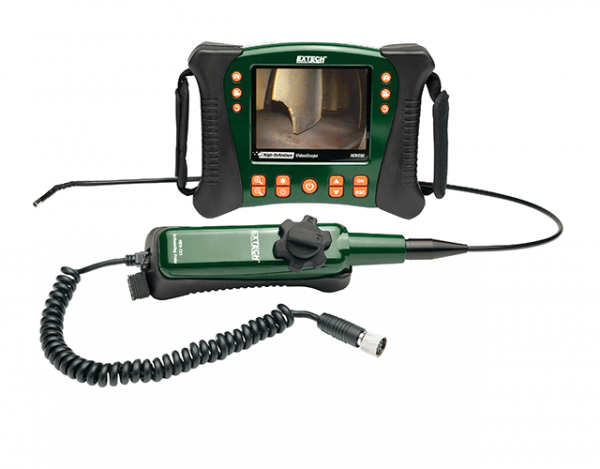

HDV640: HD VideoScope Kit With Handset/Articulating Probe

  Print

Inspection Camera with Wired Handset & 6mm Semi-Rigid, Articulating (240°) Probe (1m)

  Compare

Deskripsi Produk

Inspection Camera with Wired Handset & 6mm Semi-Rigid, Articulating (240°) Probe (1m)

The HDV640 Kit includes an Inspection Camera with Wired Handset and 6 mm Semi-Rigid, Articulating (240°) Probe (1 m) with macro lens and an HDV600 VideoScope with 5.7 in. color LCD TFT with high definition 640 x 480 resolution. The compact, high-resolution water-proof camera probe features an articulating tip that adjusts up to 240° viewing angle and has four built-in bright LED lamps with dimmer to illuminate viewed object. It provides a glare-free close-up field of view. The SD memory card included stores more than 14,600 images. Video recording (up to 4 hours) with voice annotation. AV output for viewing images and video directly on a monitor. Video and images can be transferred to a PC via the SD card or USB output. Optional wireless transmitter allows you to transmit video up to 100 ft. (30 m) from the measurement point to your monitor. Accessories include SD card, 3.7-Volt rechargeable Li-Polymer battery, patch cable, AC adaptor, USB and AV cables, camera probe, and hard carrying case.

Features:

  • Wired handset with nondetachable 6mm semi-rigid probe (1m) with macro lens
  • Articulating probe tip adjusts up to 240° viewing angle
  • HDV600 VideoScope with 5.7″ color LCD TFT with high definition 640 x 480 VGA pixel resolution
  • Compact, high-resolution water-proof camera probe
  • Camera head with four built-in bright LED lamps with dimmer to illuminate viewed object
  • Glare-free close-up field of view
  • SD memory card included to store more than 15,000 images
  • Video recording (up to 4 hours) with voice annotation
  • AV output for viewing images and video directly on a monitor
  • Video and images can be transferred to a PC via the SD card or USB output
  • Optional wireless transmitter allows you to transmit video up to 100ft (30m) from the measurement point to your monitor
  • Includes HDV600 videoscope, handset with articulating probe, SD card, 3.7V rechargable Li-Polymer battery, patch cable, 100/240V AC adaptor, USB and AV cables, and carrying case

DownloadDatasheet

Specification

SpecificationsRange
Camera
Minimum Focus distance2.36″ (60mm); macro: 0.59” (15mm)
Field of View65°
Shaft diameter0.24″ (6mm)
Working length39″ (1m)
Camera Tip bending240° (120° left, 120° right)
Borescope
*LCD Color TFT Display5.7″ (14.5cm) size; 5.3″ (13.5cm) viewable
Pixels640 x 480 VGA pixel resolution (320 x 240 for 4mm camera)
Frame Rate30 fps frame rate (NTSC & PAL)
SD Card2GB SD memory card included (supports up to 32GB SD storage)
Operatingup to 4 hours AVI video
