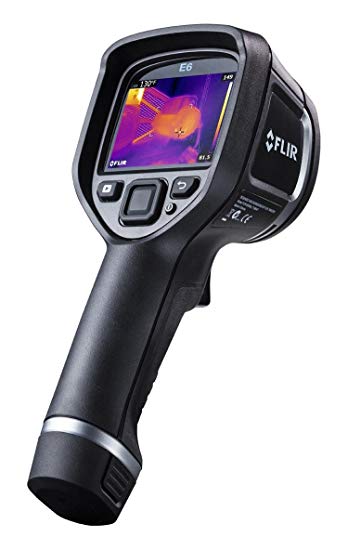

Flir E 6

Introducing The FLIR E6, Infrared Cameras With MSX®

  Print
  Compare
SKU: FLIR E6. Kategori: , . Tags: , . Brands: .

Deskripsi Produk

Introducing the FLIR E4, E5, E6, and E8 Infrared Cameras with MSX®

Now you can afford the ultimate inspection tool. Gain the competitive advantage and take care of more customers. Blow them away with dramatic MSX thermal images that clearly reveal problems from sources of energy loss, moisture intrusion and structural issues to overheating electrical and mechanical equipment.


MSX® Thermal Image Enhancement

MSX adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one thermal picture with numbers, labels, and other structural features intact so you’ll instantly recognize where the heat issue is.

Affordable Resolution Choices

From the 4800-pixel thermal image clarity of the E4 to the E8’s incredible 320×240 detector with 76,800 pixels, FLIR Ex-Series cameras offer a resolution to fit the target size, working distance, and detail required for your application as well as your budget.

Removable Battery

Quick-release, tool-type Li-ion battery is easy to remove, recharge and snap back in. Charge in-camera or with the optional charging station to keep you up and running all day.

Fast Temperature Measurement Tools

The E4 on up feature an on-screen center spotmeter for measuring temperatures. The E5, E6, and E8 also give you an area box tool with an automatic hot or cold spot that hunts down temperature extremes. And the E6 and E8 provide a blue-below and red-above color alarm to quickly alert you to heat issues.


Multiple Imaging Modes

All Ex-Series cameras let you view thermal, visual, and MSX images and store them simultaneously for further analysis using FLIR Tools software. The E6 and E8 also offer Picture-in-Picture that inserts the thermal image over the visible photo as an extra documentation option.


The Power of One Button

A focus-free lens and simple button navigation to on-screen settings, imaging modes, measurement tools, and saved JPEGS make all four of these cameras amazingly easy to operate, even with just the press of a single gloved thumb.

Flir E series

Model NumberFLIR E4FLIR E5FLIR E6FLIR E8
Imaging and Optical Data
IR Resolution80 × 60120 × 90160 × 120320 × 240
Thermal Image Sample
MSX Resolution320 × 240
Thermal Sensitivity<0.15°C<0.10°C<0.06°C
Field of View45° × 34°
FocusFocus Free
DetectorUncooled Microbolometer
Screen3.0 in. 320 × 240 color LCD
Frame Rate9 Hz
Analysis
Image ModesIR image, visual image, MSX, thumbnail galleryIR image, visual image, MSX, picture-in-picture, thumbnail gallery
Multi Spectral Dynamic Imaging (MSX)IR image with enhanced detail presentation
Picture-in-PictureN/AIR area on visual image
Temperature Range–4° F to 482°F (–20° to 250°C)
Accuracy±2% or 2°C
Measurement ModesSpot (center) mode2 modes: 1 Spot (center); 1 Area Box (Min/Max)3 modes: 1 Spot (center); 1 Area Box (Min/Max); Isotherm (above/below)
AlarmN/AN/ABlue below or red above set temperature
Emissivity CorrectionVariable from 0.1 to 1.0
Set-Up
Color PalettesIron, Rainbow, and Gray
Set-up CommandsLocal adaptation of units, language, date and time formats
Image Storage
Storage CapacityInternal memory store at least 500 sets of images
Storage ModeSimultaneous storage of images in IR, visual and MSX
File FormatsStandard JPEG, 14-bit measurement data included
Other
Battery Type / Op Time~4 hours
Dimensions / Weight/ 1.27 lbs (0.575 kg)
Drop2 meter / 6.6 ft
