Extech 380942: 30A True RMS AC/DC Mini Clamp Meter

  Print

Highest resolution (0.1mA) and accuracy at low currents

  Compare

Deskripsi Produk

Highest resolution (0.1mA) and accuracy at low currents

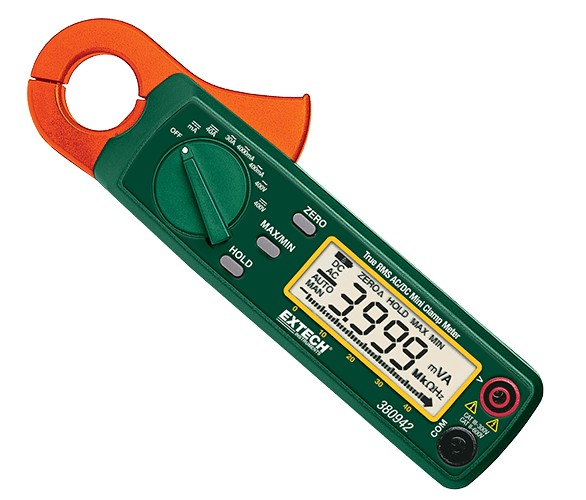

The compact Extech 380942 is a 30 Amp mini AC/DC clamp meter. The clamp meter has a remarkable 0.1mA resolution (AC), very low-current sensitivity, and a small diameter jaw designed to reach into small areas. The 30 Amp range with 0.1mA (AC) and 1mA (DC) resolution is optimized for finding problems where very low current variances would be missed by standard clamp meters. This mini clamp meter is useful for troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work, as well as residential electrical, fleet maintenance, marine, and motorcycle repairs. This CAT III-rated True RMS mini clamp meter comes with test leads, 2 AAA batteries, soft carrying case, and user manual.

Features:



  • Low AC/DC Current measurements with high resolution to 0.1mA AC and 1mA DC
  • Voltage measurements using test leads
  • Fast 40 segment bargraph
  • One touch Auto Zero for DC Current measurements
  • Min/Max, Data hold and Auto power off

DownloadDatasheet



Specification

SpecificationsRange
True RMSTrue RMS
Display counts4000 count LCD
Jaw size/Cable size0.9″ (23mm); 4/0 AWG
AC Current400mA, 4A, 30A
DC Current4A, 40A
Max ResolutionAC: 0.1mA, DC: 0.001A
Basic ACA Accuracy (% rdg)±1.5%
AC Voltage (Max Res.)400V (0.1V)
DC Voltage (Max Res.)400V (0.1V)
Data HoldYes
Min/MaxMin/Max
Dimensions7×1.8×1.3″ (178x45x32mm)
Weight8oz (225g)
