Extech 380941: 200A AC/DC Mini Clamp Meter

  Print

High resolution mini clamp with Voltage, Frequency, and Resistance

  Compare

Deskripsi Produk

High resolution mini clamp with Voltage, Frequency, and Resistance

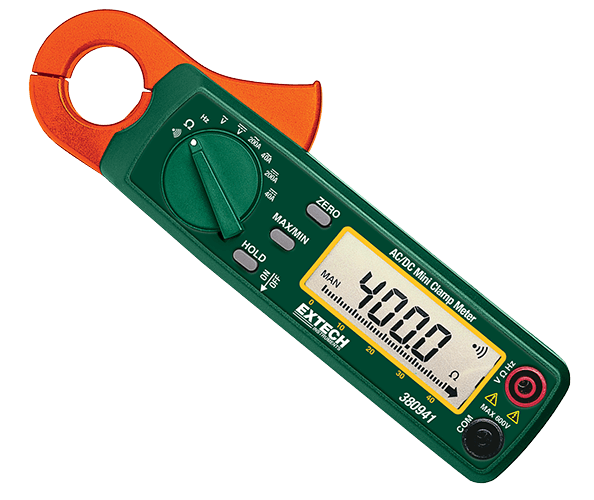

The compact Extech 380941 is a 200 Amp mini AC/DC clamp meter with a small diameter jaw designed to reach in small areas while providing 10mA resolution (DC) and very low-current sensitivity. This mini clamp meter is useful for troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work, as well as home electrical, fleet maintenance, marine, and motorcycle repairs. The 380941 has a CAT III 300-Volt safety rating and a one year warranty. Comes with batteries and manual.

Features:



  • 0.9″ (23mm) jaw opening
  • High resolution to 10mA AC/DC
  • Voltage, Resistance, and Frequency
  • Fast 40 segment bargraph
  • One touch Auto Zero for DC Current measurements
  • Min/Max, Data hold and Auto power off

DownloadDatasheet



Specification

SpecificationsRange
Display counts4000 count LCD
Jaw size/Cable size0.9″ (23mm); 4/0 AWG
AC Current40A, 200A
DC Current40A, 200A
Max Resolution0.01A AC/DC
Basic ACA Accuracy (% rdg)±1.0%
AC Voltage (Max Res.)400V (0.1V)
DC Voltage (Max Res.)400V (0.1V)
Resistance (Max Res.)400Ω (0.1Ω)
Frequency (Max Res.)100kHz (0.001Hz)
Diode/ContinuityContinuity
Data HoldYes
Min/MaxYes
Dimensions/Weight7×1.75×1.25″ (178x45x32mm)/ 8oz (225g)
