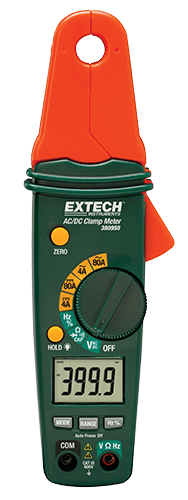

Extech 380950: 80A Mini AC/DC Clamp Meter

  Print

Small diameter elongated jaw fits into tight spaces

  Compare

Deskripsi Produk

Small diameter elongated jaw fits into tight spaces

The compact Extech 380950 is a mini AC/DC clamp meter. The 380950 has an extra-small diameter jaw designed to reach into very small areas while providing a 1 mA resolution and very low-current sensitivity. This amp clamp performs essential troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work as well as residential, automotive, fleet maintenance, marine, and motorcycle electrical repair. Complete with test leads, two 1.5V AAA batteries and carrying case.

Features:

  • 4000 count LCD display
  • 1mA resolution
  • Jaw opens to 0.5″ (12.7mm)
  • AC/DC Voltage, Resistance, Frequency, Capacitance, and Duty Cycle
  • Diode Test/Continuity Beeper
  • Data Hold
  • Complete with test leads, two 1.5V AAA batteries and carrying case

DownloadDatasheet

Specification

SpecificationsRange
Display counts4000 count LCD
Jaw size/Cable size0.5″ (12mm); 3/0 AWG
AC Current4.000A, 80.0A
DC Current4A, 80A
Max Resolution1mA
Basic ACA Accuracy (% rdg)±2.5%
AC Voltage (Max Res.)600V (0.1mV)
DC Voltage (Max Res.)600V (0.1mV)
Resistance (Max Res.)40MΩ (0.1Ω)
Frequency (Max Res.)10MHz (0.001Hz)
Diode/ContinuityContinuity
Data HoldYes
Min/MaxMax
Dimensions8.2×2.7×1.4″ (210x70x37mm)
Weight7oz (200g)
