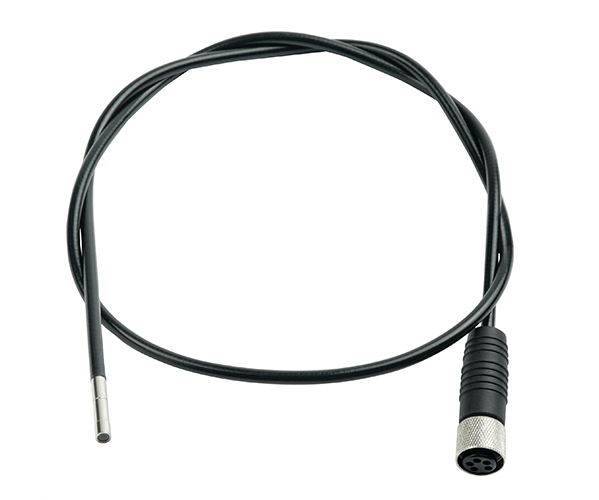

The HDV-4CAM-5FM is an optional camera for use with the HDV600 VideoScope series. This 4mm Camera head with a Macro lens, features a 56° field of view. Five meter semi-rigid cable length. Minimum focus distance at 0.59 in. (15mm).
| Specifications | Range |
|---|---|
| Resolution | 320 x 240 pixels |
| Length | 5m (16′) |
| Outer diameter (O.D.) | 4mm (0.157″) |
| Focus distance | 2 to 6cm (0.79 to 2.36″) |
| Housing | Stainless Steel |
| Field of View | 56° |
| Number of LEDs | 4 |
| Lamp Output | 1000 Lux at 15mm |
| Operating Temperature | -20 to 70°C (-4 to 158°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
