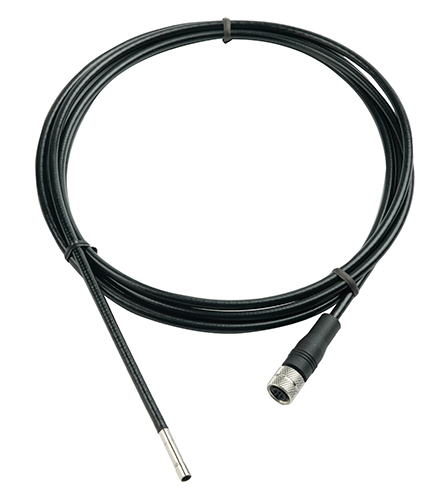

The HDV-5CAM-3RM is an optional camera for use with the HDV600 VideoScope series. This 5.8mm camera head has a macro lens with a 65° field of view. 3 meter semi-rigid cable length. Minimum focus distance at 0.59 in. (15mm).
| Specifications | Range |
|---|---|
| Resolution | 640 x 480 pixels |
| Length | 3m (9.9’) |
| Outer diameter (O.D.) | 5.5mm (0.22″) |
| Focus distance | 6cm to ∞ (2.36” to ∞) |
| Housing | Stainless Steel |
| Field of View | 65º |
| Number of LEDs | 4 |
| Lamp Output | 3500 Lux at 20mm |
| Operating Temperature | -20 to 70°C (-4 to 158°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
