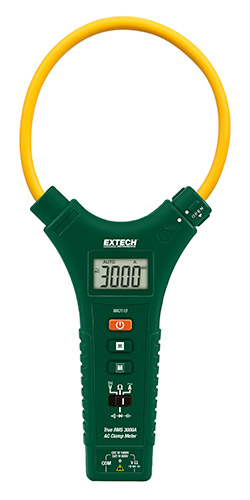

Extech MA3110: 3000A True RMS AC Flex Clamp Meter

11″ Flexible Clamp Meter with LCD

SKU: Extech MA3110. Kategori: AC/Alternating Current, clamp meters, Electrical Instruments. Tags: 11" Flexible Clamp Meter with LCD, Extech MA3110, Extech MA3110: 3000A True RMS AC Flex Clamp Meter. Brands: EXTECH.

Deskripsi
Specification

Deskripsi Produk

11″ Flexible Clamp Meter with LCD

Flexible 11″ (28cm) clamp jaw easily wraps around bus bars and cable bundles that may be difficult to access with regular clamp meters. The thin 8mm cable diameter easily fits into tight spaces. Includes test leads for multimeter functions measuring Voltage, Resistance, and Capacitance. True RMS and CAT IV rated allows for maximum accuracy and safety for your measurements.

Features:

True RMS for accurate readings of noisy, distorted or non-sinusoidal waveforms
Flexible 11″ (28cm) clamp jaw easily wraps around bus bars and cable bundles
Autoranging AC Current
Multimeter functions: AC/DC Voltage, Resistance, Capacitance, Diode/Continuity
8mm cable diameter fits into tight spaces and around large conductors
6000 count LCD display
Data Hold freezes reading on display
Over range and Low battery indicator
Auto power off with disable
Complete with test leads and two AAA batteries

Datasheet

Specification

Specifications	Ranges	Max Resolution	Basic Accuracy
AC Current	600A, 3000A	0.1A, 1A	±1%
AC Voltage	6V, 60V, 600V, 1000V	0.001V	±1%
DC Voltage	6V, 60V, 600V, 1000V	0.001V	±0.8%
Resistance	600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ	0.1Ω	±1.5%
Capacitance	6nF, 60nF, 600nF, 6μF, 60μF, 600μF	0.001nF	±3%
Diode/Continuity	Yes
Dimensions	11.4 x 5.3 x 1.1″ (290 x 135 x 27.8mm)
Weight	7.3oz (208g) w/o batteries
