MA440

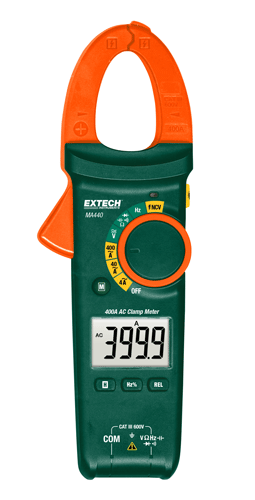

Extech MA440: 400A AC Clamp Meter + NCV

  Print

Clamp Meter with Non-Contact Voltage Detector

  Compare

Deskripsi Produk

Clamp Meter with Non-Contact Voltage Detector

Three models to choose from, with or without True RMS and AC or AC/DC Current functions. Choose True RMS model for accurate readings of non-sinusoidal waveforms, model with DC Current function for automotive applications, or model with Type K function when applications require Temperature measurements. The MA440 Series meters are fully loaded with multimeter functions and built-in non-contact voltage (NCV) detector to meet your application needs!

Features:

  • 1.2″ (30mm) jaw size fits conductors up to 500MCM
  • Built-In Non-Contact Voltage Detector (NCV)
  • Large backlit LCD display
  • Functions include: NCV, AC/DC Voltage, AC Current, Resistance, Capacitance, Frequency, Diode Test, Continuity
  • Relative mode for Capacitance, Data Hold, Auto Power Off and Low Battery Indicator
  • Complete with test leads, three AAA batteries and pouch

DownloadDatasheet

Specification

SpecificationsRange (Max. Resolution)
AC Current400.0A (1mA)
DC Current
Basic Current AccuracyAC: ±2.0%
DC Voltage600V (0.1mV)
AC Voltage600V (1mV)
Basic Voltrage AccuracyAC: ±1.2% DC: ±0.8%
Non-Contact Voltage (NCV)100 to 600V
Resistance40MΩ (0.1Ω)
Capacitance100μF (0.01nF)
Frequency1MHz (0.01Hz)
Duty CycleYes
Diode/ContinuityYes
Dimensions9x3x1.6″ (228x77x41mm)
Weight9.3oz (265g)
