40180

Extech40180:Tone Generator And Amplifier Probe Circuit Finder Kit

  Print

Heavy duty kit with audible tone easily identifies wires or cables

  Compare

Deskripsi Produk

Heavy duty kit with audible tone easily identifies wires or cables

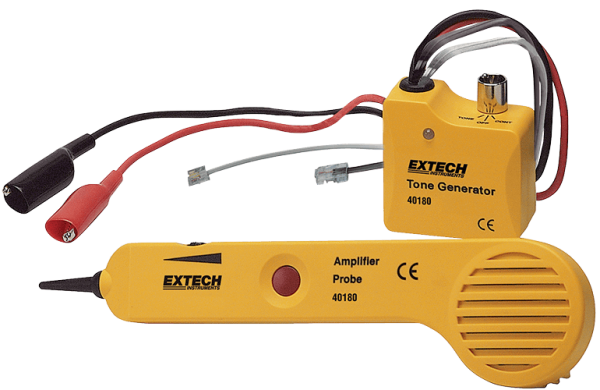

The 40180 is a Tone Generator and Amplifier Probe Kit. This heavy-duty kit with audible tone easily identifies wires or cables. The insulated inductive probe tip prevents shorting conductors. Featuring a wire trace, continuity test, clear/busy/ringing line test, and tip/ring identification. Includes Alligator clips, RJ45 and RJ11 modular connectors, 9V battery and Case.

Features:

  • Insulated inductive probe tip prevents shorting conductors
  • Tests include wire trace, continuity test, clear/busy/ringing line test and tip/ring identification
  • Alligator clips for non-terminated cables and modular connectors for direct connections to telephone and internet wiring
  • Selectable continuous or variable tone generation
  • Built-in speaker on probe with sensitivity control

DownloadDatasheet

Specification

SpecificationsRange
Power9V battery (tone generator and probe (1 each))
Tone output1kHz, 6V square wave (approximately)
DimensionsProbe: 228 x 57 x 25.4mm (9 x 2.25 x 1”)
Generator: 63.5 x 63.5 x 38.1mm (2.5 x 2.5 x 1.5”)
Weight272g (0.6lb)
