HDV-25CAM-30G

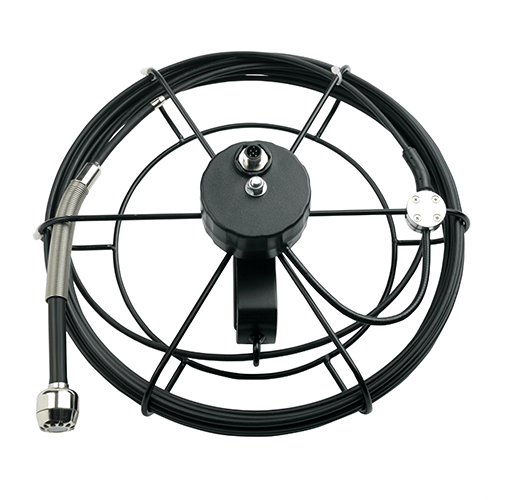

Extech HDV-25CAM-30G: 25mm VideoScope Camera Head

  Print

73° FOV / Long Depth of Field lens and 30m Fiberglass Cable

  Compare

Deskripsi Produk

73° FOV / Long Depth of Field lens and 30m Fiberglass Cable

The HDV-25CAM-30G is an optional camera for use with the HDV600 VideoScope series. This 25mm Camera head with a long depth of field lens, features a 73° field of view. Thirty meter fiberglass-core cable length.

Features:

  • 25mm diameter camera head with a long depth of field lens
  • 30m (98.4ft) fiberglass-core probe with 12 LEDs
  • 73° FOV (field of view)

DownloadDatasheet

Specification

SpecificationsRange
Resolution640 x 480 pixels
Length30m (98.4′)
Outer diameter (O.D.)25mm (0.98″)
Focus distance6cm to ∞ (2.36″ to ∞)
HousingCopper with Nickel Coating
Field of View73º
Number of Lamps12
Lamp Outputmax 8000 Lux at 20mm
Operating Temperature-20 to 70°C (-4 to 158°F)
Storage Temperature-2
